Información detallada

Modelo:	BXT-DSF600: el número de unidad	Matriz de detección:	A base de hierro, a base de cobre, a base de aluminio, a base de nailon, a base de cobalto, a base d
Tiempo de prueba:	Dependiendo del tipo de muestra, generalmente es de alrededor de 25 segundos	Sistema óptico:	Círculo de Rowland Paschen-Runge Sistema Óptico de Espectro Completo
Rango de longitud de onda:	160-800nm	Distancia focal:	300 mm
El detector:	Sensor de imagen multi-CMOS de alta resolución	Eléctrodo:	Electrodo de chorro de tungsteno
Resaltar:	direct reading Emission Spectrometer , Metal analysis Emission Spectrometer , Full-band Emission Spectrometer

Descripción de producto

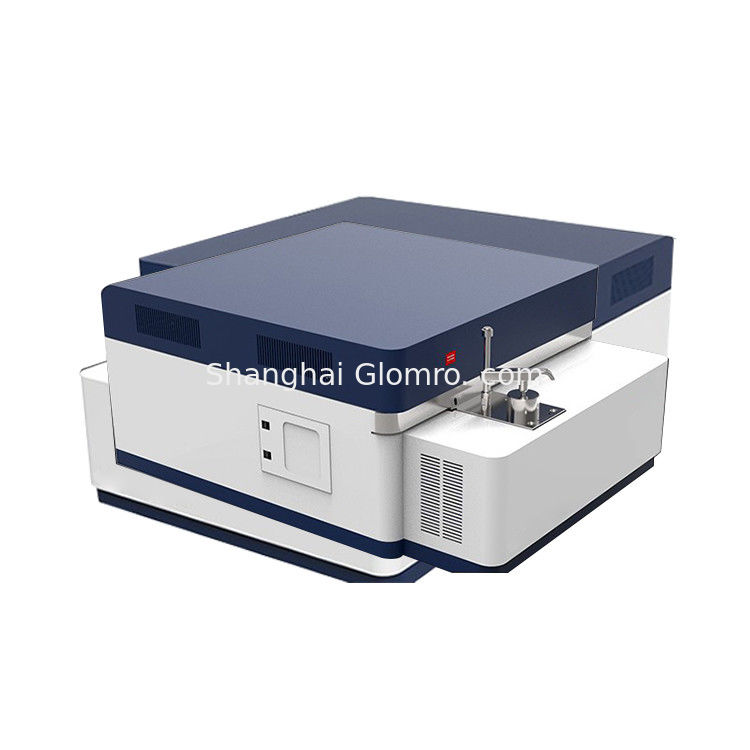

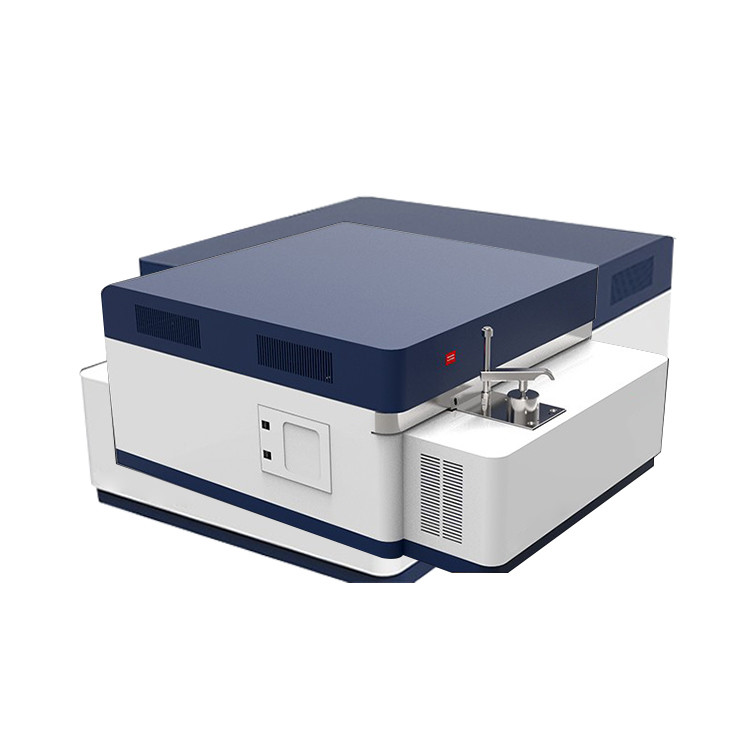

Full-spectrum direct reading spectrometer

The full-spectrum direct reading spectrometer adopts international standard design and manufacturing techniques, and utilizes fully digital technology to replace the cumbersome photomultiplier tube (PMT) analog technology. It is in sync with international spectrometer technology and features a digital excitation light source, an international-level detector, and a high-speed data reading system, enabling the instrument to possess high performance, low detection limit, long-term stability, and repeatability.
The spectrometer is one of the preferred devices for quality monitoring, material type identification, material research and development in the metal manufacturing, processing, and metallurgy industries.

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 0

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 1

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 2

Technical Specifications

Model	BXT-DSF600	BXT-DSF900
Detection Matrix	Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc.	Iron-based, copper-based, aluminum-based, nylon-based, cobalt-based, magnesium-based, titanium-based, zinc-based, lead-based, etc.
Testing time	Depending on the type of sample, it is generally around 25 seconds	Depending on the type of sample, it is generally around 25 seconds
Optical system	Paschen-Runge Rowland Circle Full-Spectrum Optical System	Paschen-Runge Rowland Circle Full-Spectrum Optical System
Wavelength range	160-800nm	130-800nm
Focal length	300mm	400mm
Detector	High-resolution multi-CMOS image sensor	International-level detector module, high-performance linear CCD
Electrode	Tungsten Jet Electrode	Tungsten Jet Electrode
Analysis Gap	Sample table analysis gap:3. 5mm	Sample table analysis gap:3.5mm
Working temperature	(10-35)℃	(10-35)℃
Storage temperature	(0-45)℃	(0-45)℃
Work humidity	20%-80%	20%-80%
Purity requirements for argon gas	99.999%	99.999%
Argon gas inlet pressure	0.5MPa	0.5MPa
In an argon flow	Excitation flow rate is approximately 3. 5L/min	Excitation flow rate is approximately 3.5L/min
Light source type	Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS)	Newly developed adjustable digital light source, high-energy pre-combustion technology (HEPS)
Discharge frequency	100-1000 Hz	100-1000 Hz
Discharge current	Max 380A	Max 380A
Excitation Stage Aperture	13mm	13mm
Vacuum system	Vacuum system	Vacuum system
Working power supply	220V AC,50/60Hz,Protective grounded single-phase power supply	220VAC,50/60Hz,Protective grounded single-phase power supply
Instrument size	720X560X370mm	860x660x360mm
Instrument weight	65kg	80kg

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 3

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 4

Packing & Delivery

BXT-DSF600 Metal Analysis Emission Spectrometer Full-band Direct Reading Spectrometer 5

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese

etiqueta:

Lugar de origen:	China
Nombre de la marca:	BAXIT
Número de modelo:	Los requisitos de seguridad de los equipos de ensayo deberán cumplirse en todos los casos.

Cantidad de orden mínima:	1
Precio:	US$17,805-18,780/unit
Detalles de empaquetado:	Caja de cartón/caja de madera
Tiempo de entrega:	5-8Día de trabajo
Condiciones de pago:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente:	10000 piezas
