Air Leakage Tester For Ducts Boundary Line Air Leakage Tester In HVAC Systems

Informacion basica
Place of Origin: China
Nombre de la marca: BAXIT
Model Number: BXT-DALT6900/BXT-DALT6910
Minimum Order Quantity: 1
Precio: US$6,320-9,656
Packaging Details: Carton box/Wooden box
Delivery Time: 5-8Working day
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10000pcs
Información detallada
Model: BXT-DALT6910 Flow Range: Small nozzle:4-70m³/h Large nozzle:70-1200m³/h
Precision: The reading is ±2.5% ± 0.1 m³/h Resolution: 0.01m³/h
Static pressure Range: ±4500Pa Temperature Range: 0-60℃
Resaltar:

Air leakage tester for ducts

,

Boundary line Air leakage tester


Descripción de producto

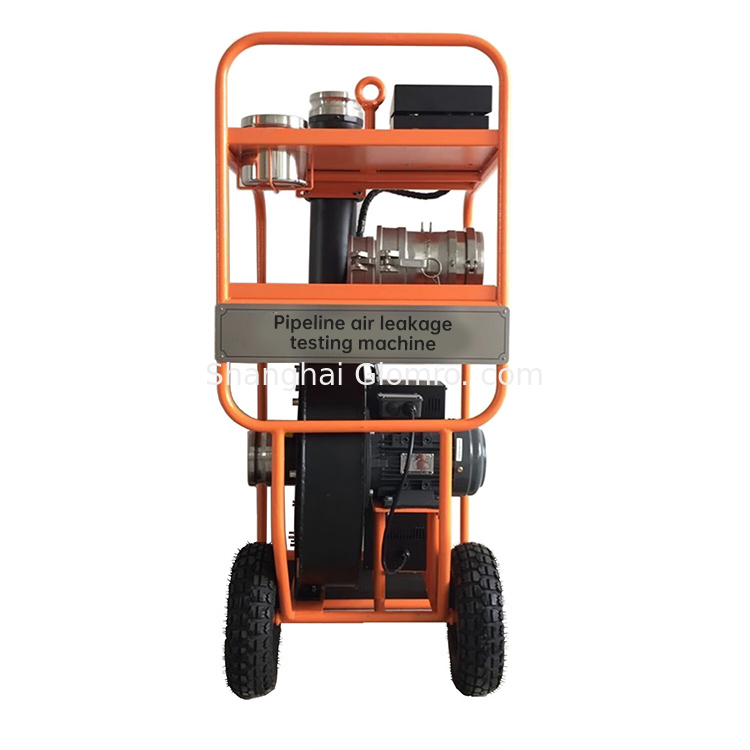

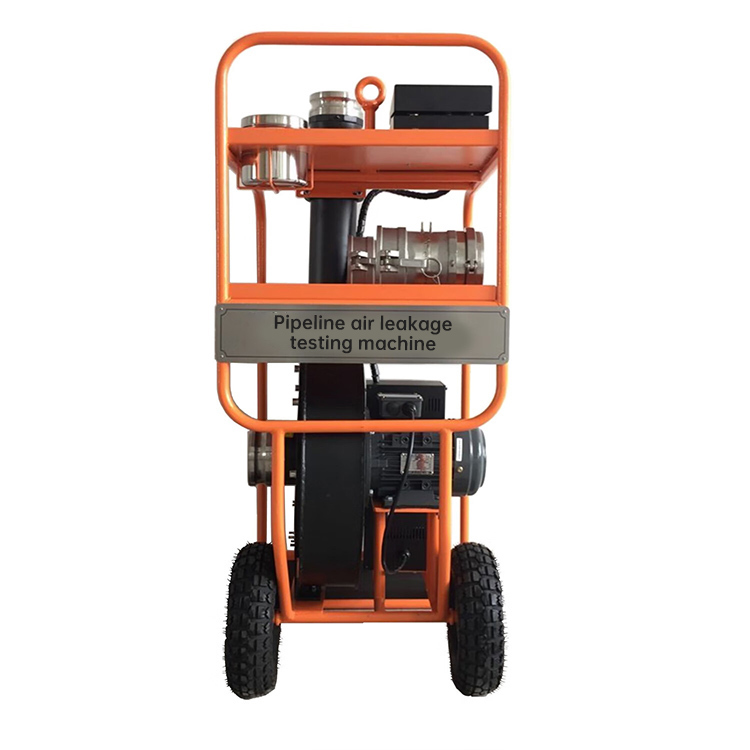

Pipe leakage air volume tester

           The duct leakage testing machine is used for testing the leakage volume of air conditioning ducts, fire protection ducts and enclosed spaces. It can be used to test both segmented ducts and the total duct after the installation of the entire system, ensuring the working efficiency of the system and avoiding energy waste.

Air Leakage Tester For Ducts  Boundary Line Air Leakage Tester In HVAC Systems 0

Air Leakage Tester For Ducts  Boundary Line Air Leakage Tester In HVAC Systems 1

Air Leakage Tester For Ducts  Boundary Line Air Leakage Tester In HVAC Systems 2




Technical Specifications

Model
BXT-DALT6900 BXT-DALT6910
Flow Range Matrix:36-640m³/h Nozzle:4-36m³/h Small nozzle:4-70m³/h
 Large nozzle:70-1200m³/h
Precision The reading is ±2.5% ± 0.1 m³/h
Resolution 0.01m³/h 0.01m³/h
Static pressure Range ±2500Pa ±4500Pa
Precision The reading is ±1Pa, with an accuracy of 1%.
Resolution 0.1Pa 0.1Pa
Temperature Range 0-60℃ 0-60℃
Precision ±0.5℃ ±0.5℃
Resolution 0.1℃ 0.1℃
Atmospheric pressure Range 70-130kPa 70-130kPa
Precision The reading is ±2%
Resolution 0.1kPa 0.1kPa
Power supply 100 - 120V single phase 16A / 220 - 240V single-phase 10A 220V ± 10%, single phase, 50/60Hz, 16A
Weight 72KG 63KG
Size 540*500*1200mm 480*610*1045mm
Storage 1000 sets 1000 sets

Air Leakage Tester For Ducts  Boundary Line Air Leakage Tester In HVAC Systems 3

Air Leakage Tester For Ducts  Boundary Line Air Leakage Tester In HVAC Systems 4

Air Leakage Tester For Ducts  Boundary Line Air Leakage Tester In HVAC Systems 5

Air Leakage Tester For Ducts  Boundary Line Air Leakage Tester In HVAC Systems 6
