Información detallada

Modelo:	BXT-2000W	Torque máximo:	los 2000N.m
Rango de medición:	2% a 500% de N.M.	Error relativo de la indicación del par de ensayo:	Nivel 1
Error de indicación relativa de la repetibilidad del par de ensayo:	el ≤±1%	Resolución del esfuerzo de torsión:	1/500.000 del par máximo, sin clasificación
Resaltar:	Microcomputer controlled wire torsion testing , Microcomputer controlled wire torsion test , wire torsion testing machine

Descripción de producto

Metal wire torsion testing machine

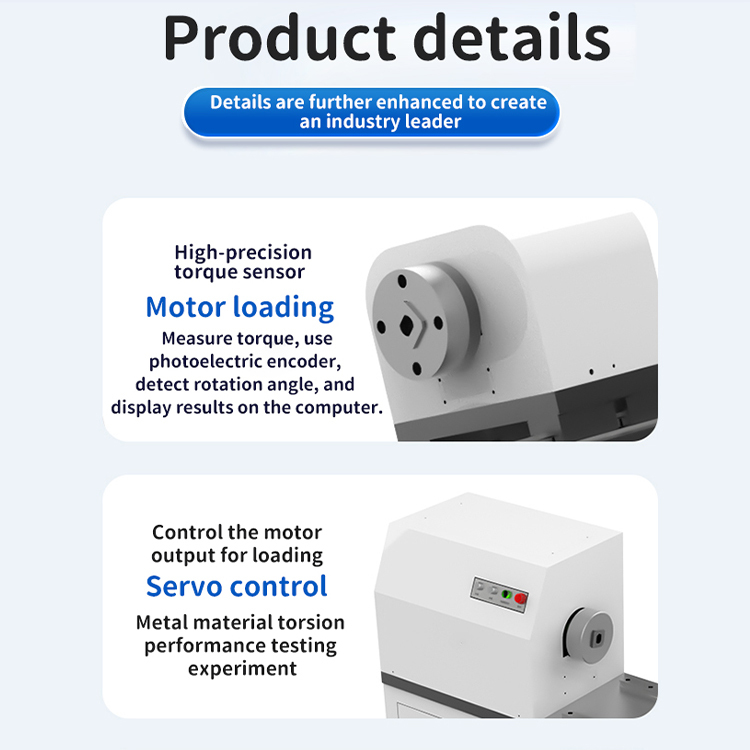

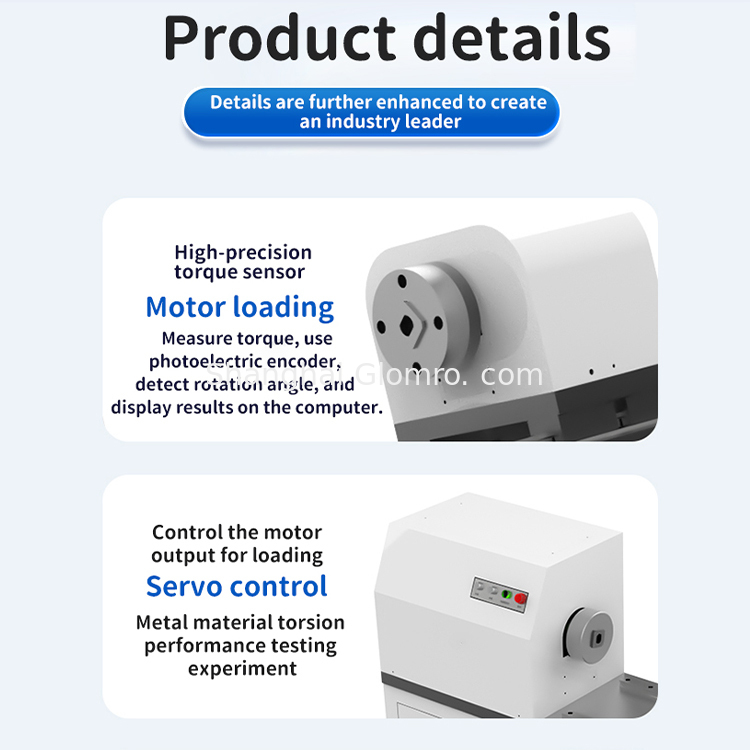

The torsion testing machine is mainly used for the torsion testing of hardware components, parts, raw materials, semi-finished parts, and finished parts. The tested samples are installed between adjustable fixtures to adapt to the torsion mechanical performance tests of different tested samples. The testing machine is controlled by a computer and can collect data such as torque, peak value, angle, and curves; the display shows the torque-time, twist-angle-time, and torque-twist-angle test curves of the tested parts; it can realize the storage, extraction, and printing of test data, as well as the storage and printing of test reports.

Microcomputer-controlled Wire Torsion Testing Machine for Wire Torsion Testing 0

Microcomputer-controlled Wire Torsion Testing Machine for Wire Torsion Testing 1

Microcomputer-controlled Wire Torsion Testing Machine for Wire Torsion Testing 2

Digital display type torsion testing machine
Model	BXT-10W	BXT-20W	BXT-500W	BXT-1000W	BXT-2000W	BXT-5000W
Maximum torque	10N.M	20N.M	500N.M	1000N.M	2000N.M	5000N.M
Measurement range	2%-500%N.M
Relative Error of Test Torque Indication	Level 1
Relative Indication Error of Test Torque Repeatability	≤±1%
Torque resolution	1/500,000 of the maximum torque, without grading
Moving Distance Between Chucks	400mm
Coaxiality Accuracy Between Two Fixtures	Within a range of 1000mm≤∅0.2mm
Torsion angle measurement range	0～10000°
Relative error of the torsion angle measurement	±1%
Torsion angle resolution	±0.001°
Torsion angle accuracy	0.009°
Torsional speed	0.01 - 720°/min infinitely variable speed control
Relative error of torque reversal speed	Within ±1.0% of the set value
Power supply	220V 50Hz AC
Torsion Direction	Forward rotation Reverse rotation

Microcomputer-controlled Wire Torsion Testing Machine for Wire Torsion Testing 3

Microcomputer-controlled Wire Torsion Testing Machine for Wire Torsion Testing 4

Microcomputer-controlled Wire Torsion Testing Machine for Wire Torsion Testing 5

Packing & Delivery

Microcomputer-controlled Wire Torsion Testing Machine for Wire Torsion Testing 6

FAQ

1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler

4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The service is good

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese

etiqueta:

Lugar de origen:	China
Nombre de la marca:	BAXIT
Número de modelo:	BXT-10W/BXT-20W/BXT-500W/BXT-1000W/BXT-2000W/BXT-5000W

Cantidad de orden mínima:	1
Precio:	US $2445.0 - 10600.0 / Unit
Detalles de empaquetado:	Caja de cartón/caja de madera
Tiempo de entrega:	5-8Día de trabajo
Condiciones de pago:	,Carta de crédito,Documentos contra aceptación,Documentos contra pago,Transferencia bancaria,Western
Capacidad de la fuente:	10000 piezas
