Flash point tester
The fully automatic closed cup flash point tester is mainly used for petroleum products. This instrument is controlled by a 7-inch high-definition color Android LCD touch screen. The operation interface can be switched between Chinese and English as needed. It adopts an intelligent temperature control algorithm to precisely control the heating curve and has functions such as automatic ignition, display, automatic locking of the flash point value, automatic printing, and automatic cooling. The instrument has the advantages of accurate measurement, good repeatability, stable and reliable performance, and simple operation. It is widely used in power, petroleum, chemical industry, commodity inspection, research and other fields.
Parameters
| Model |
Open flash point tester
BXT-KS |
Close flash point tester
BXT-BS |
| Monitor |
7-inch high-definition Android touch screen, 1024*600px |
| Measurement range |
Room temperature~400℃ |
| Temperature measurement |
Class A PT100 (three-wire system, temperature compensation) |
| Temperature detection accuracy |
0.1℃ |
| Accuracy |
/ |
±0.5℃ |
| Barometer accuracy |
≤0.5kPa |
| Repetition |
≤4℃ |
≤3.0℃(close flash point≤110℃)
≤5.0℃(close flash point＞110℃) |
| Heating rate |
Before the expected flash point by 56℃, it is 14℃ - 17℃/min
Starting from 23℃ before the expected flash point, it is 5℃ - 6℃/min |
StepA:5～6°C/min;
StepB:1.0～1.5°C/min;
StepC:2.5～3.5°C/min |
| Ignition method |
Electric ignition |
| Flash fire detection method |
Flame ionization detection |
K-type thermocouple |
| Ignition function |
Automatically lock the ignition point value |
/ |
| Cooling method |
Forced air cooling |
| Temperature control |
Intelligent temperature control |
| Intelligent temperature control |
/ |
6.4mm |
| Display content |
Real-time temperature curve, with Chinese-English switch function |
| Data storage |
Unlimited, according to the EMMC space |
| Other functions |
Data export, data upload to the cloud platform |
| Printer |
Thermal printing, supports Chinese characters, graphics and QR codes, with no limit on the number of lines |
| Self-check function |
Detection arm, sweeping rod, ignition wire, printer, fan, etc. |
Detection arm, ignition wire, printer, fan, cover switch, etc. |
| Power supply |
AC220V±10% 50Hz±5% |
| Power |
≤600W |
| Environmental temperature |
10℃～35℃ |
| Environmental humidity |
<85% |
| Size |
43cmx28cmx35cm(LxWxH) |
| Weight |
11.3kg |
11.7kg |
Classification
Structure and Parameters

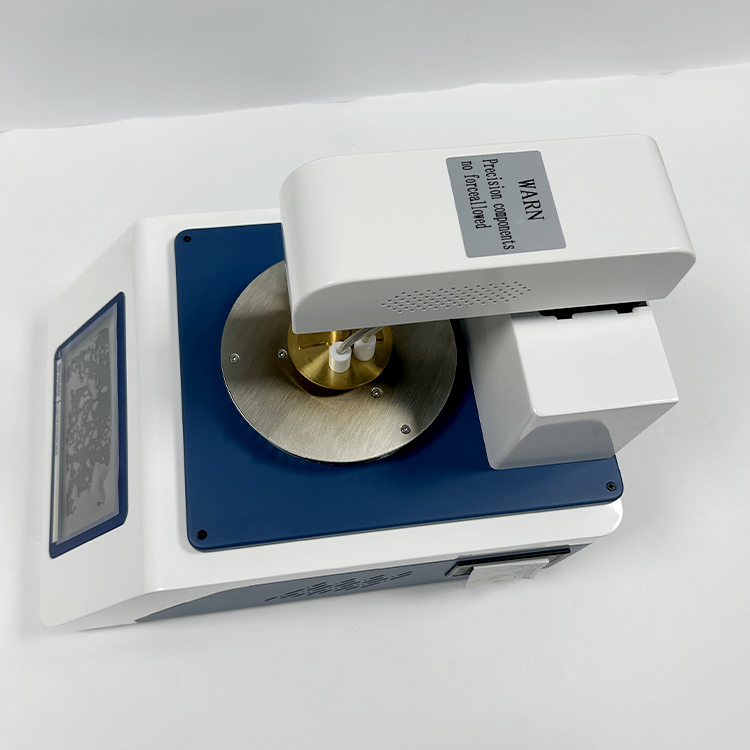

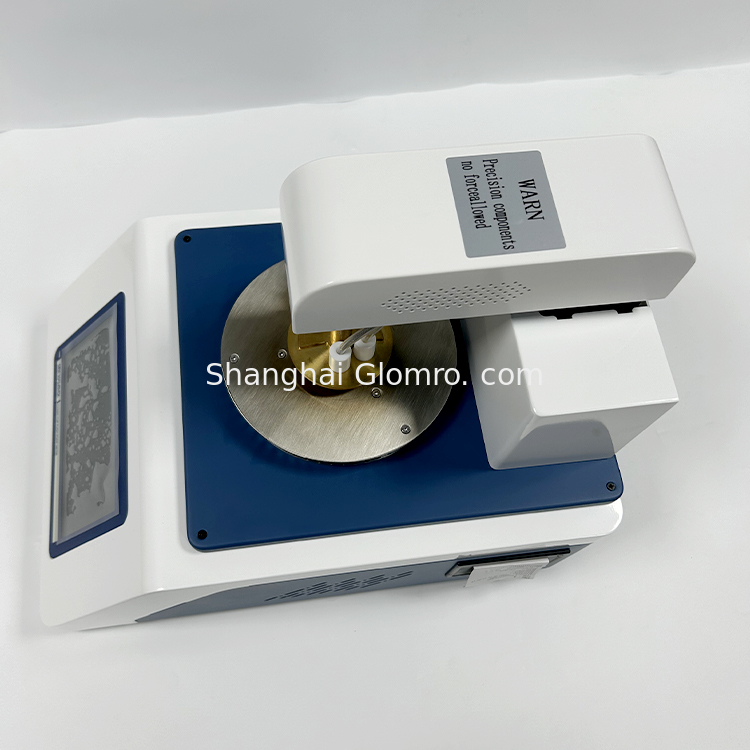

Real photo
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South
America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central
America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The
service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
