High Pressure Homogenizer Machine Homogenizer Price

High-pressure nano homogenizer

    The high-pressure nano-homogenizer, as a device integrating "high-pressure transportation - multi-force synergy - precise homogenization", has its core value in achieving nano-scale refinement and dispersion of materials through physical actions, providing technical support for product innovation and process upgrading in various industries. Whether it is precise drug delivery in the pharmaceutical industry, quality improvement in the food industry, or scientific research exploration in biotechnology, it plays an irreplaceable role. With the continuous development of nanotechnology, the high-pressure nano-homogenizer will be upgraded towards higher pressure, more intelligence, and greater environmental friendliness, further expanding its application boundaries in high-end manufacturing and scientific research fields.

Working principle

   The high-pressure nano homogenizer is mainly composed of a high-pressure homogenizing chamber and a pressurization mechanism. Under the action of the pressurization mechanism, the high-pressure solution rapidly passes through the homogenizing chamber with a specially designed geometric shape. The materials simultaneously undergo mechanical forces such as high-speed shearing, high-frequency oscillation, cavitation phenomenon, and convective impact, as well as corresponding thermal effects, thereby causing changes in the physical, chemical and structural properties of the materials, and ultimately achieving the homogenization effect.

Model and Specifications

Device features

1.High-pressure advantage: The higher the pressure, the smaller the particle size of the material and the more uniform the distribution. However, it should be noted that high pressure will also lead to an increase in heat generation, and a cooling system (such as a water chiller) needs to be provided to control the temperature.

2.Easy cleaning and compliance: Some devices adopt a split design for the pump body, which is easy to disassemble. They support online cleaning (CIP) and online sterilization (SIP), and comply with GMP standards in the pharmaceutical and food industries.

3.Intelligent control: The intelligent touch screen enables real-time monitoring of parameters such as pressure, flow, and temperature. It supports data storage, copying (such as exporting via USB drive), and is convenient for process traceability.

4.Durability of material: The homogeneous cavities are mostly made of materials such as diamond, zirconia ceramics, and duplex steel, which are resistant to high pressure and corrosion, thereby extending the service life of the equipment.

Application

In biological research and production, the equipment is mainly used for cell disruption and extraction of intracellular substances:
1.Disrupting microbial cells such as bacteria, yeast, and fungi, efficiently releasing the active substances like enzymes, proteins, and nucleic acids within the cells, while avoiding the damage to the active components caused by high temperatures (with the cooling system, the temperature can be controlled at ≤ 40℃);
2.Homogenizing the extracted biological samples to ensure the accuracy of subsequent detection or purification.

Product structure

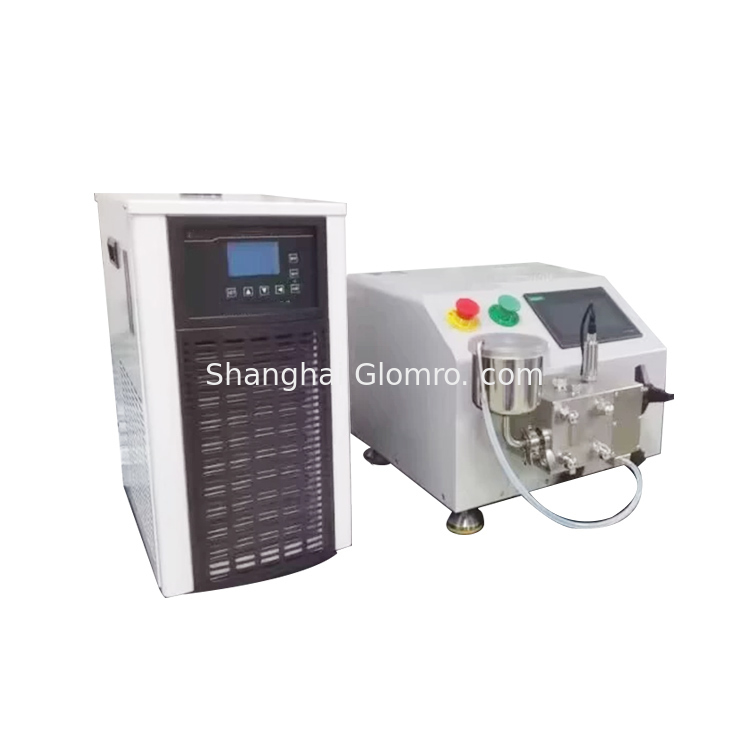

Physical picture
