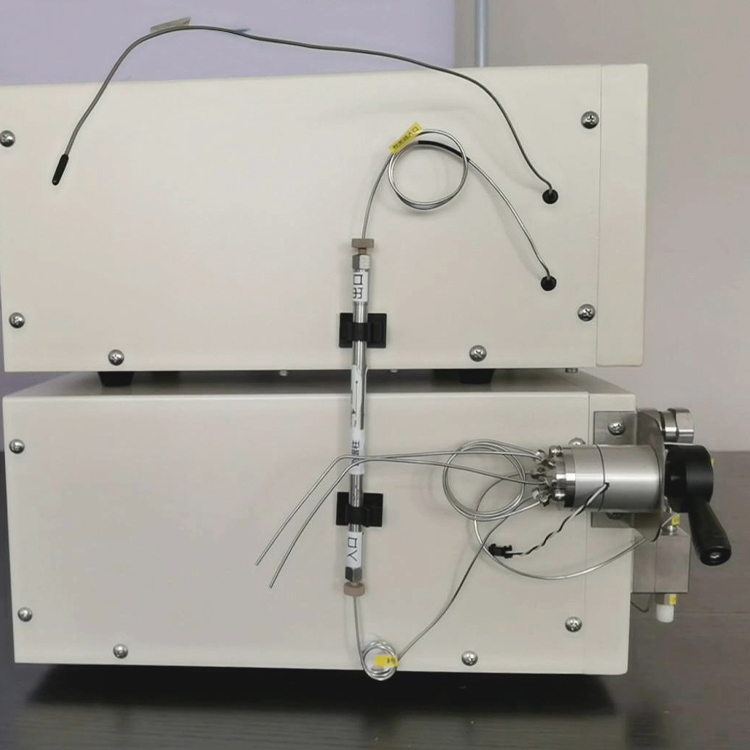

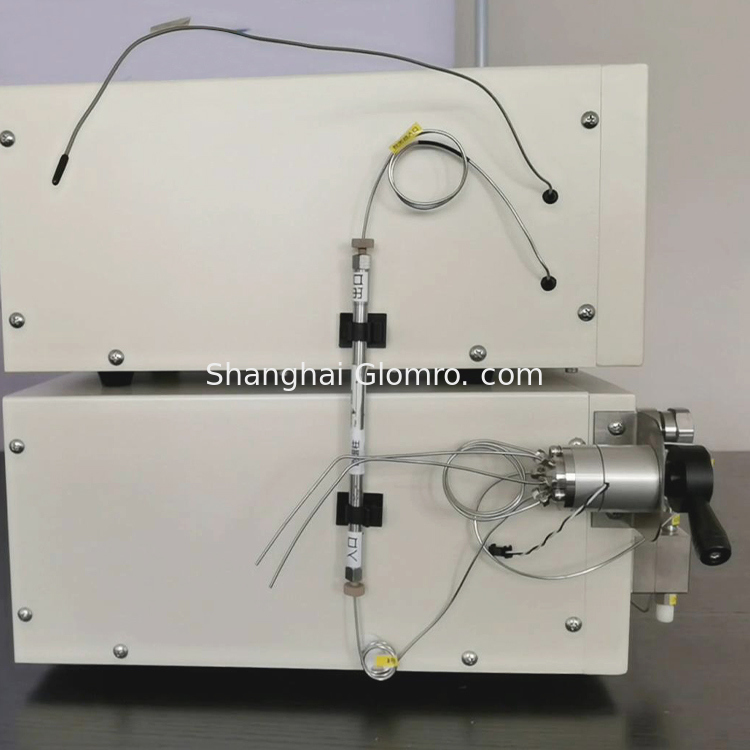

HPLC High Performance Liquid Chromatograph
High-Precision HPLC Machine high performance liquid chromatograph with Micro-Volume Dual Piston Pump
HPLC Maintenance Tool Kit for Easy Repair and Long-Term Use
Product information
Technical Specifications
| Upgraded High Performance Liquid Chromatograph |
| Upgraded ultraviolet-visible variable wavelength detector |
Upgraded high-pressure constant-current infusion pump |
| Wavelength range |
190nm~700nm |
Infusion method |
Micro-volume tandem double plunger |
| Wavelength indication error |
≤±1nm |
Maximum infusion pressure |
6000psi |
| Wavelength repeatability error |
≤±0.1nm |
Flow setting range |
0.001~9.999ml/min(Adjust the flow rate at a step size of 0.001 ml/min) |
| Dynamic noise |
≤±0.75x10-5AU(Methanol,1mL/min,254nm,20°C) |
Flow setting value error |
≤0.5% |
| Dynamic baseline drift |
≤±1x10-4AU/h(Methanol,1mL/min,254nm,20℃) |
Flow stability error |
≤0.2%RSD |
| Linear range |
≥104 |
Pump sealing performance |
Less than 0.1 MPa, flow rate 1 mL/min, pressure drop less than 5 MPa |
| Minimum detection concentration |
≤4x10-9g/mL(Naphthalene/methanol solution) |
Time program function |
Yes |
| Qualitative repeatability |
RSD ≤0.1% 6 |
Size |
W260*H130*D420mm |
| Quantitative repeatability |
RSD ≤0.5% 6 |
|
|
| Spectral bandwidth |
6nm |
|
|
| Flow cell volume |
8μL |
|
|
| Path length |
10mm |
|
|
| Time program function |
Yes |
|
|
| Size |
W260*H130*D420mm |
|
|
| Standard High Performance Liquid Chromatograph |
| Standard model isothermal liquid chromatography system |
Standard model pressure constant current infusion pump |
| Light source |
Deuterium lamp |
Infusion method |
Micro-volume tandem double plunger |
| Wavelength range |
190~700nm(Increase by 1 nm)Can be set by the keyboard |
Maximum infusion pressure |
6000Psi(≈42MPa) |
| Wavelength indication error |
<±1nm |
Flow setting range |
(0.001~9.999)mL/minMinimum increment 0.001mL/min(Analytical type) |
| Wavelength repeatability error |
<±0.5nm |
Flow setting value error |
≤0.5% |
| Bandwidth |
< 6nm |
Flow stability error |
≤0.2%RSD |
| Dynamic noise |
<±1.5x10-5AU(Under specific conditions) |
Safety |
Equipped with self-check upon startup, high and low pressure alarm and protection functions |
| Dynamic baseline drift |
<±1.5x10-4AU(Under specific conditions) |
Principle of Liquid Transportation |
Yes |
| Flow cell volume |
8uL |
Size |
W260*H130*D420mm |
| Size |
W260xH170xD360mm |
Weight |
6.3kg |
| Weight |
6.0kg |
|
|
Testing plan
| 01 |
Determination of Vitamin A/D3/E in Feed - Standard Version |
| 02 |
Determination of Vitamin A/D3/E in Feed - Enhanced Version |
| 03 |
Determination of Amino Acids (Fish Meal Etc.) in Feed - Standard Version |
| 04 |
Determination of Amino Acids (Fish Meal Etc.) in Feed - Enhanced Version |
| 05 |
Determination of Melamine in Milk Powder - Standard Version |
| 06 |
Determination of Melamine in Milk Powder - Enhanced Version |
| 07 |
Determination of Phthalic Anhydride 4P/16P in RoHS - Standard Version |
| 08 |
Determination of Phthalic Anhydride 4P/16P in RoHS - Enhanced Version |
| 09 |
Determination of Baicalin in Traditional Chinese Medicine - Standard Version |
| 10 |
Determination of Baicalin in Traditional Chinese Medicine - Enhanced Version |
| 11 |
Determination of T501 Antioxidant Content in Power Oil - Standard Version |
| 12 |
Determination of T501 Antioxidant Content in Power Oil - Enhanced Version |
| 13 |
Determination of Triclosan in Surgical Sutures - Standard Version |
| 14 |
Determination of Triclosan in Surgical Sutures - Enhanced Version |
| 15 |
Determination of Ginseng Royal Jelly (Kui Lin Acid) - Standard Version |
| 16 |
Determination of Ginseng Royal Jelly (Kui Lin Acid) - Enhanced Version |
| 17 |
Determination of Fructosolactose/Glucose/Sucrose in Bee Royal Jelly - Standard Version |
| 18 |
Determination of Fructosolactose/Glucose/Sucrose in Bee Royal Jelly - Enhanced Version |
| 19 |
Determination of Tetracycline Class Antibiotics in 11 - Standard Version |
| 20 |
Determination of Tetracycline Class Antibiotics in 11 - Enhanced Version |
| 21 |
GPC Gel Purification Chromatograph Semi-Preparative Stepwise + Gel Chromatography Column 6 + Manual Switch Valve |
| 22 |
GPC Gel Purification Chromatograph Semi-Preparative Stepwise + Gel Chromatography Column 6 + Fraction Collector |
Plan1
| Determination of vitamins A, D3 and E in feed |
| Upgraded version - Gradient system standard configuration |
List of Configuration for Pre-treatment Equipment (Optional) |
| Product Name |
Quantity/Unit |
Product Name |
Quantity/Unit |
| High-pressure constant current pump |
2 |
Ultrasonic cleaner |
1 |
| Ultraviolet detector |
1 |
Vacuum pump |
1 |
| Manual injection valve |
1 |
Core sand filtration device |
1 |
| Chromatography workstation |
1 |
Microporous needle-type filter |
1 |
| Solvent tray |
1 |
Microporous filter membrane |
1 |
| Mixer |
1 |
Column temperature box |
1 |
| Back-pressure valve |
1 |
Solid-phase extraction device |
1 |
| Chromatography column |
1 |
pH meter |
1 |
| Micro-syringe |
1 |
Water bath constant temperature oscillation |
1 |
| Immunoaffinity column |
1 |
Centrifuge |
1 |
|
|
Crusher |
1 |
| Note: Computers and related pharmaceutical equipment must be provided by the customers themselves. |
Note: If the customer's laboratory already has the required items, there is no need to re-purchase. |
Plan2
| Liquid-phase determination of amino acids (such as fish meal) in feed |
| Upgraded version - Gradient system standard configuration |
List of Configuration for Pre-treatment Equipment (Optional) |
| Product Name |
Quantity/Unit |
Product Name |
Quantity/Unit |
| High-pressure constant current pump |
2 |
Ultrasonic cleaner |
1 |
| Ultraviolet detector |
1 |
Vacuum pump |
1 |
| Manual injection valve |
1 |
Sand core filtration device |
1 |
| Chromatography workstation |
1 |
Microporous needle-type filter |
1 |
| Solvent tray |
1 |
Microporous filter membrane |
1 |
| Injection stand |
1 |
Column temperature box |
1 |
| Mixer |
1 |
Water bath (recommended to be equipped) |
1 |
| Back-pressure valve |
1 |
|
|
| Amino acid method kit |
1 |
|
|
| Micro-syringe |
1 |
|
|
| Note: Computers and related pharmaceutical equipment must be provided by the customers themselves. |
Note: If the customer's laboratory already has the required items, there is no need to re-purchase. |
Plan3
| Liquid-phase determination of melamine in milk powder |
| Upgraded version - Standard configuration of the equalization system |
List of Configuration for Pre-treatment Equipment (Optional) |
| Product Name |
Quantity/Unit |
Product Name |
Quantity/Unit |
| High-pressure constant current pump |
1 |
Ultrasonic cleaner |
1 |
| Ultraviolet detector |
1 |
Vacuum pump |
1 |
| Manual injection valve |
1 |
Core sand filter device |
1 |
| Chromatography workstation |
1 |
Organic needle-type filter |
1 |
| Injection stand |
1 |
Water-based needle-type filter |
1 |
| Special chromatography column |
1 |
Organic filter membrane |
1 |
| Micro injection device |
1 |
Water-based filter membrane |
1 |
|
|
Column temperature box |
1 |
| Note: The relevant pharmaceutical equipment customers are required to provide their own equipment. |
Note: If the customer's laboratory already has the required items, there is no need to re-purchase. |
Plan4
| Liquid-phase determination of phthalic anhydride 4P/16P in the ROHS industry |
| Upgraded version - Gradient system standard configuration |
| Product Name |
Quantity/Unit |
Product name |
Quantity/Unit |
| High Performance Liquid Chromatograph |
1 |
Bowl |
1 |
| Chromatography column temperature box |
1 |
Brown volumetric flask |
1 |
| Column (of chromatography) |
1 |
Computer |
1 |
| Ultrasonic degassing machine |
1 |
Distilled water |
1 |
| Organic microporous filter |
1 |
Acetonitrile |
1 |
| Electronic balance |
1 |
Methanol |
1 |
| Pulverizer |
1 |
Phthalate standard substance |
1 |
Plan5
| GPC Gel Purification Chromatography System Scheme for Gel Permeation (Purification, Preparation, Collection of Non-distilled Fractions) |
| Standard model Equalization System standard configuration |
| Product name |
Quantity/Unit |
Product name |
Quantity/Unit |
| Gel purification (permeation preparation) dedicated pump |
1 |
System-specific package, accessories |
1 |
| Gel purification (permeation preparation) dedicated detector |
1 |
Chromatography software |
1 |
| Injection device |
1 |
Gel-specific chromatography column |
1 |
| Quantitative ring 5ml |
1 |
Manual switching valve (According to customer requirements, a fraction collector can also be optionally equipped) |
1 |
